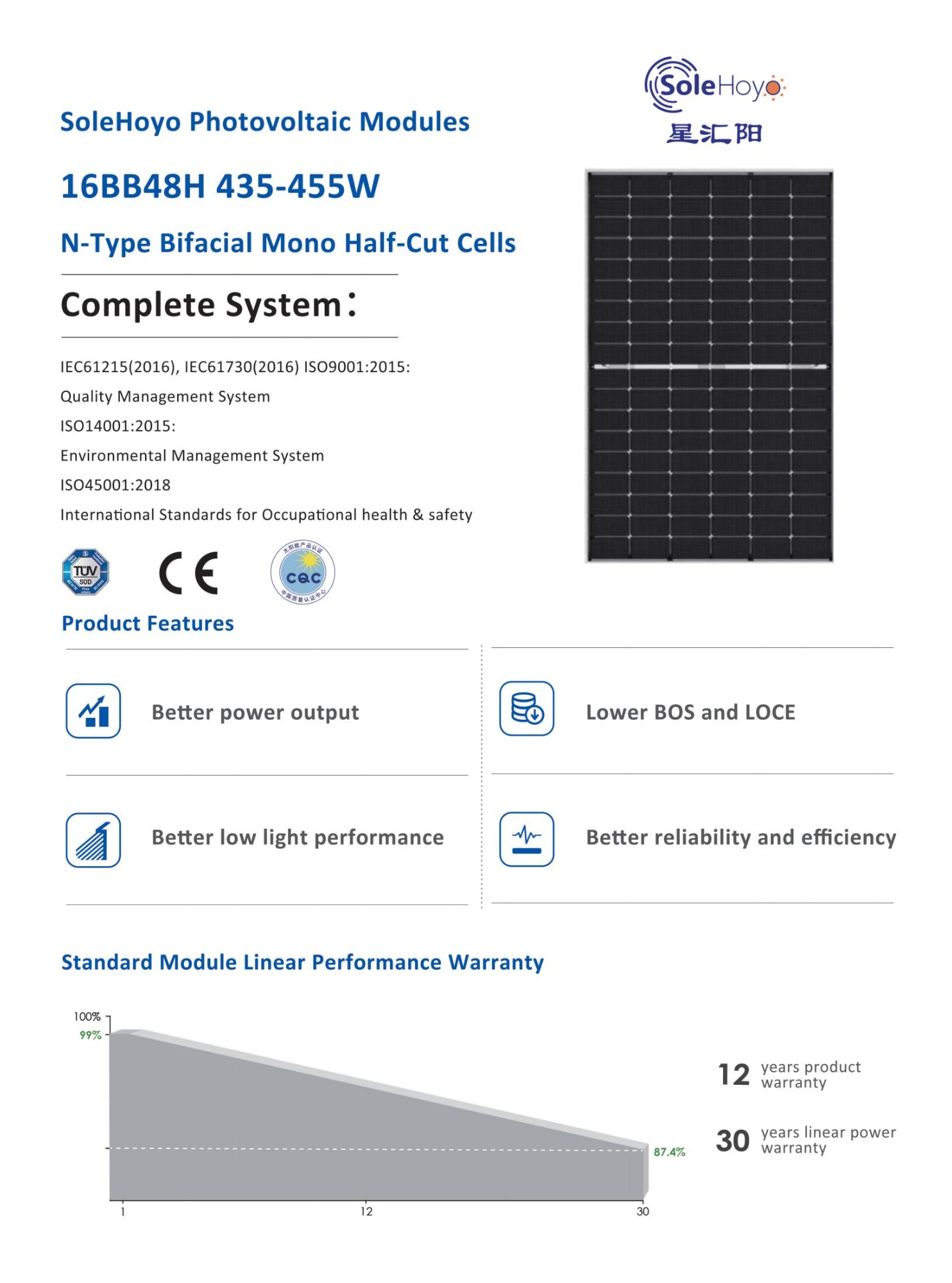

The SoleHoyo 16BB48H series is a high-efficiency solar module engineered for the global distributed energy market. Boasting exceptional low-light performance and wide temperature adaptability, it is the ideal solution for both commercial & industrial (C&I) solar power plants and residential off-grid systems, delivering cost-effective clean energy across Southeast Asia, Africa, and beyond.
Key Advantages
High Efficiency : Equipped with N-type 182mm monocrystalline half-cut cells and a 16BB busbar design, the module achieves a remarkable conversion efficiency of 21.8% to 22.8%. The advanced bifacial technology enables significant rear-side power generation, with a maximum bifacial power output of up to 501Wp.
Rugged Reliability : Certified to IEC 61215, IEC 61730, and ISO standards. It features excellent resistance to micro-cracks and hot spots. With an operating temperature range of -40℃ to +85℃, it performs reliably in harsh environments, including high humidity and dusty conditions.
Cost Effectiveness : The low temperature coefficient (-0.29%/°C) minimizes power loss in high temperatures. Its optimized dimensions (1762×1134×30mm) reduce the balance of system (BOS) cost, maximizing the ROI of your solar project.
Key Specifications
Power Range: 435Wp - 455Wp
Max System Voltage: 1500V DC
Module Efficiency: 21.8% - 22.8%
Operating Temperature: -40℃ ~ +85℃
Frame Material: Anodized Aluminum Alloy
Warranty
We stand behind our products with a 12-year product warranty and a 30-year linear performance warranty. Rest assured, the module will retain no less than 87.4% of its original power output after 30 years.
