The SoleHoyo 16BB66H series is a high-efficiency solar module engineered for the global distributed energy market. Boasting exceptional power output and wide environmental adaptability, it is the ideal solution for large-scale commercial & industrial (C&I) solar power plants and utility-scale projects, delivering cost-effective clean energy across Southeast Asia, Africa, and beyond.
Key Advantages
-
Ultra-High Efficiency: Equipped with N-type TOPCon 182mm monocrystalline half-cut cells and a 16BB busbar design, the module achieves a remarkable conversion efficiency of 22.1%. The advanced bifacial technology enables significant rear-side power generation, with a maximum bifacial power output of up to 637Wp under 10% irradiance.
-
Rugged Reliability: Certified to IEC 62941, ISO 9001, ISO 14001, and ISO 45001 standards. It features excellent resistance to PID, micro-cracks, and hot spots. With a mechanical load capacity of 5400Pa (front) and 2400Pa (rear), it performs reliably in harsh environments, including high humidity and dusty conditions.
-
Maximum ROI: The optimized temperature coefficient (-0.300%/°C) minimizes power loss in high temperatures. Its large-format design (2278×1134×30mm) reduces the balance of system (BOS) cost, maximizing the ROI of your utility-scale solar project.

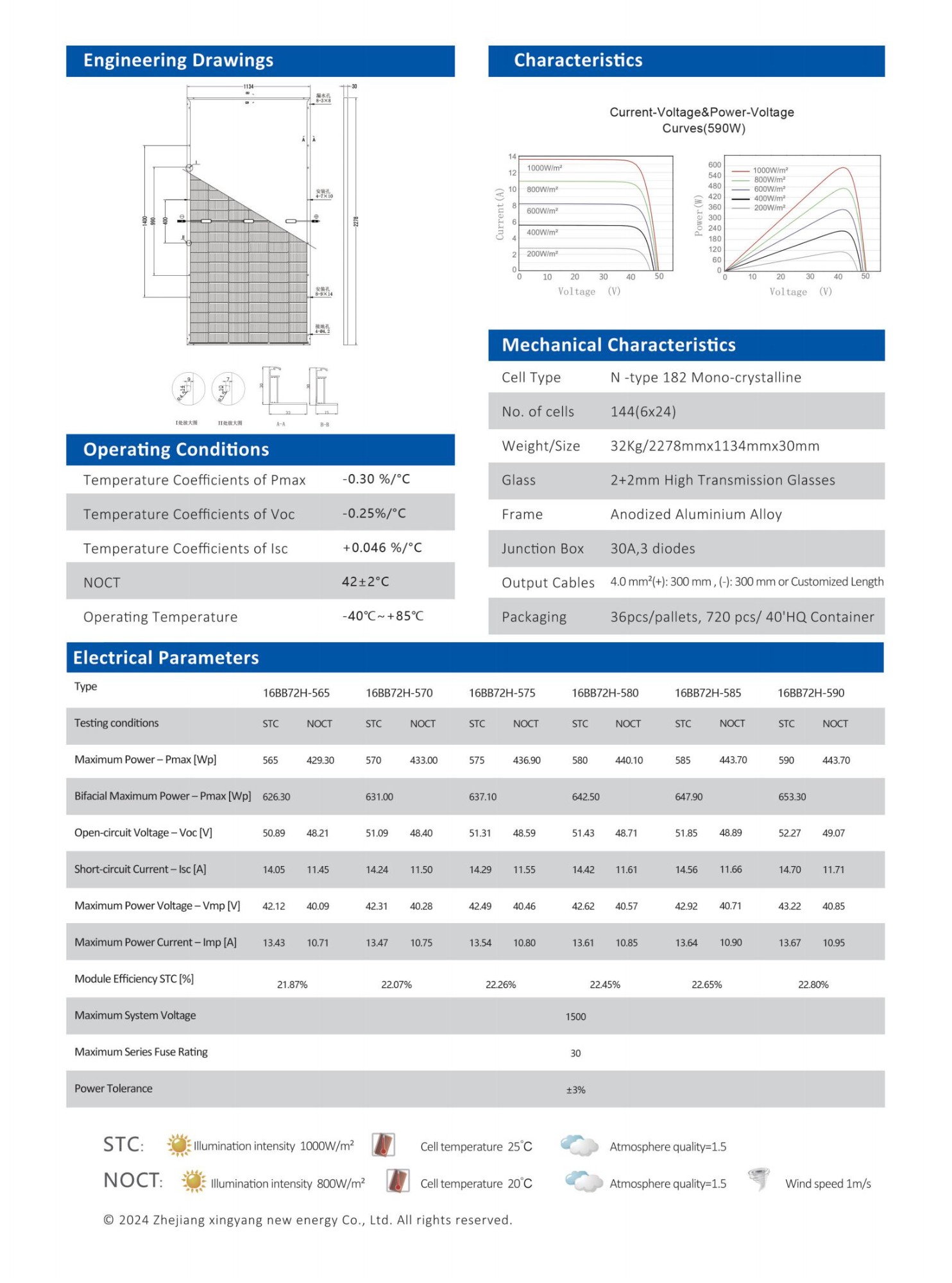

Key Specifications
-
Power Range: 565Wp - 590Wp
-
Max System Voltage: 1500V DC
-
Module Efficiency: 22.1%
-
Operating Temperature: -40℃ ~ +85℃
-
Frame Material: Anodized Aluminum Alloy
Warranty
We stand behind our products with a 15-year product warranty and a 30-year linear performance warranty. Rest assured, the module will retain no less than 87.4% of its original power output after 30 years, with only 1% degradation in the first year and 0.4% annually thereafter.
