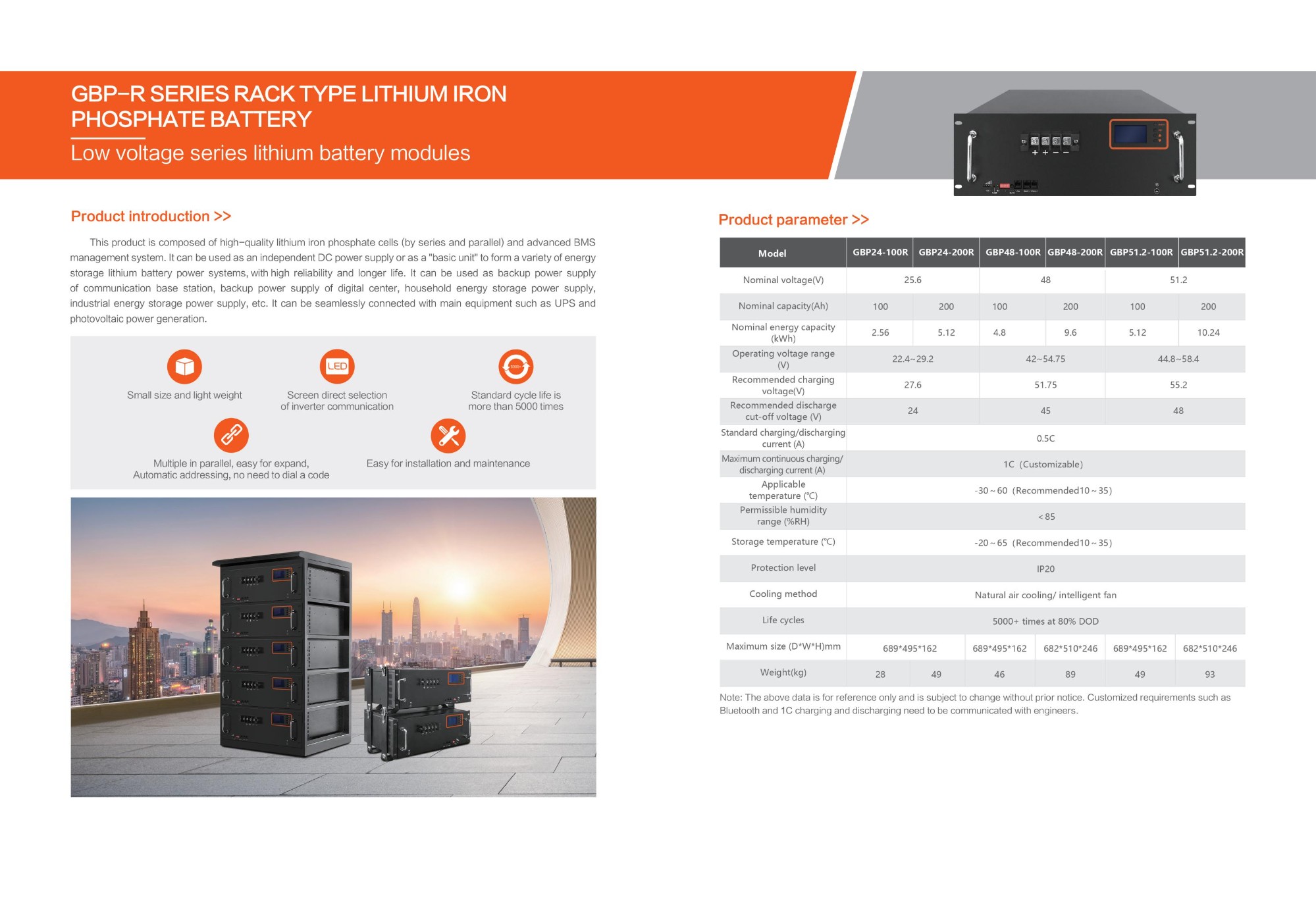

The SoleHoyo GBP-R series is a low-voltage, rack-mounted lithium iron phosphate (LiFePO4) battery module engineered for global commercial and industrial energy storage applications. Composed of high-quality LiFePO4 cells and an advanced BMS management system, it delivers exceptional reliability and long service life, making it the ideal solution for communication base stations, data center backup power, residential energy storage, industrial energy storage, and photovoltaic power generation systems across Southeast Asia, Africa, and beyond.

Key Advantages

Modular & Scalable Design: Available as a compact, rack-mounted module that can operate as an independent DC power supply or as a "basic unit" to form large-scale energy storage systems. It supports seamless parallel expansion with automatic addressing, eliminating the need for manual code dialing, and offers flexible capacity configuration to meet diverse project requirements.
Superior Reliability & Longevity: Built with high-quality LiFePO4 cells and an advanced Battery Management System (BMS), it ensures stable performance and a cycle life of over 5,000 times at 80% DOD. The small size and light weight simplify installation and maintenance, while the screen direct selection of inverter communication protocols enables seamless integration with UPS, photovoltaic systems, and other main equipment.
Wide Environmental Adaptability: Operates efficiently across a broad temperature range (-30°C to 60°C) and features an IP20 protection rating with natural air cooling or intelligent fan cooling. This ensures reliable performance in diverse climatic conditions, from tropical humidity to arid, dusty environments.
Comprehensive Safety & Compatibility: Adopts a multi-level battery protection strategy and fault isolation measures to guarantee system safety. It is compatible with a wide range of main equipment, making it a versatile and trustworthy core component for mission-critical backup power and energy storage applications.

Key Specifications

Model Range: GBP24-100R, GBP24-200R, GBP48-100R, GBP48-200R, GBP51.2-100R, GBP51.2-200R
Nominal Voltage: 25.6V / 48V / 51.2V
Nominal Capacity: 100Ah / 200Ah
Nominal Energy: 2.56kWh / 5.12kWh / 4.8kWh / 9.6kWh / 5.12kWh / 10.24kWh
Max Continuous Charge/Discharge Current: 1C (Customizable)
Cycle Life: > 5,000 times at 80% DOD
Operating Temperature: -30°C ~ 60°C (Recommended: 10 ~ 35°C)
Protection Level: IP20
Cooling Method: Natural Air Cooling / Intelligent Fan

Warranty

We stand behind our products with a comprehensive product warranty and dedicated after-sales support. The GBP-R series LiFePO4 battery modules undergo rigorous quality testing and validation to ensure consistent performance and long service life, making them a reliable and future-proof energy storage solution for your commercial and industrial projects worldwide.
